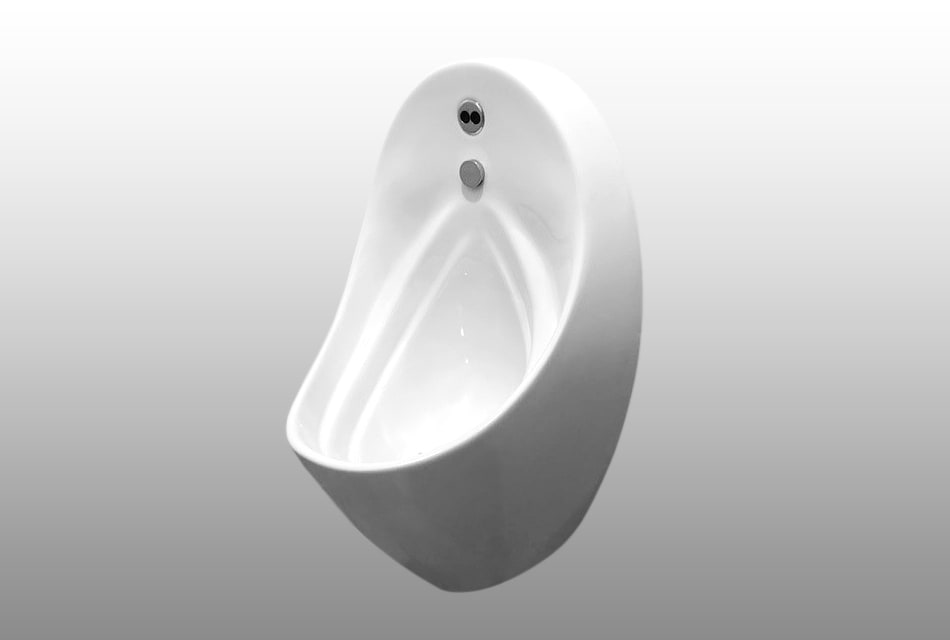

ELLIPSE

• Heavy duty
• Usage: High Traffi c Sanitary Areas & Changing Facilities
• Equipped Urinal Unit: Complete
• Urinal bowl: Suspended and basculating
• Accessibility: To all components for maintenance or inspection
• Fixed: With stainless steel anti-vandal screws
• Colour: White ceramic o Frame: Solid Zink-plated
• Equipped: Assembled fl ushing branch: diam. 50mm
• Flushing system: Electronic/ housed-in with infrared Circuit endowed with automatic shutoff system
• Components: Housed inside the ceramic urinal
• Solenoid valve with fi lter, infrared electronic circuit
• Hydraulic part in brass with incorporated fl ow regulator
• Swinging drain trap: For inclining the unit forward and backwards
• Equipped: with 230/18Vac safety transformer and sifon.
• CE Certified.

TECHNICAL SPECIFICATIONS:

• Operation A: VELO activation, 1 sec fl ush after user detection for 3 sec.
• A Flushing period: 3sec
• Urinal Operation B: 8sec fl ushing after the user moves away
• Interruption: Automatic shutoff 3min after continuous functioning
• Supply: 230/18Vac 6VA transformer Class II IP65
• Water fl ow: 3bar: 0-12L/min (Adjustable)
• Operating pressure: 1-10bar
